Singapore clients purchased ISUZU 5000Liters aviation refueler tanker truck for aircraft refueling process, which is manufactured by CEEC TRUCKS. ISUZU 100P 5cbm jet fuel tanker truck 5000Liters aviation refueler truck is produced based on smaller ISUZU 4x2 truck chassis, equipped with 4KH1CN6LB diesel engine, efficial horse power output can be 88KW / 120HP, emission 2999cc,  customized to remove the exhaust DPF system and ADBlue, also originally reprogram the ECU process, so can guarantee truck working as EURO 3 and not have power limit problem. Matched working with MSB 5 shift manual gearbox, convenient for driving and lower fuel consumption. Upper body kit is Aluminum alloy material 5000L fuel tanker body, efficiently for storage and transport aviation jet fuel, in the front of tanker matched with independent pump room, inside with refueling hose reel and refueling gun, reliable fuel filter device with flow rate 400Liters/min, multiple valves to realize pump in and pump out function, all make ISUZU 5000L Jet Fuel tanker truck high quality aluminum alloy aviation fuel tanker for helicopter refueling work.

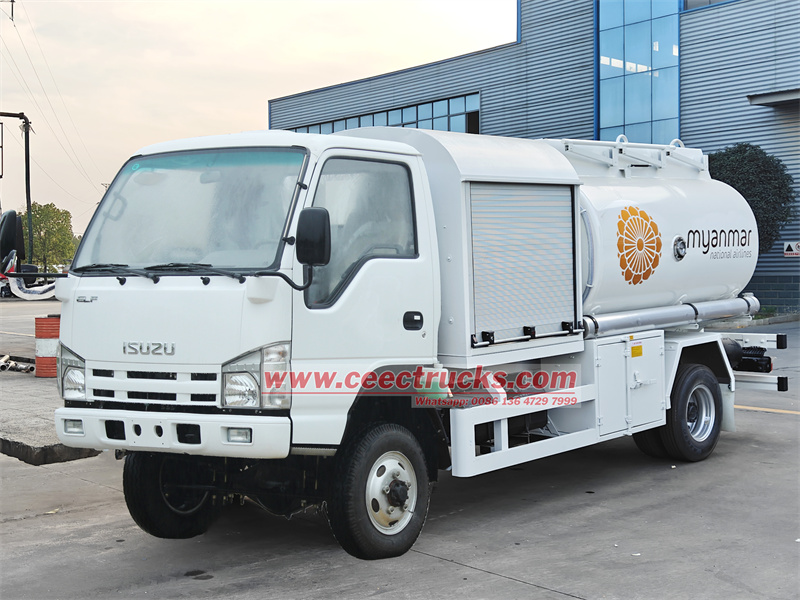

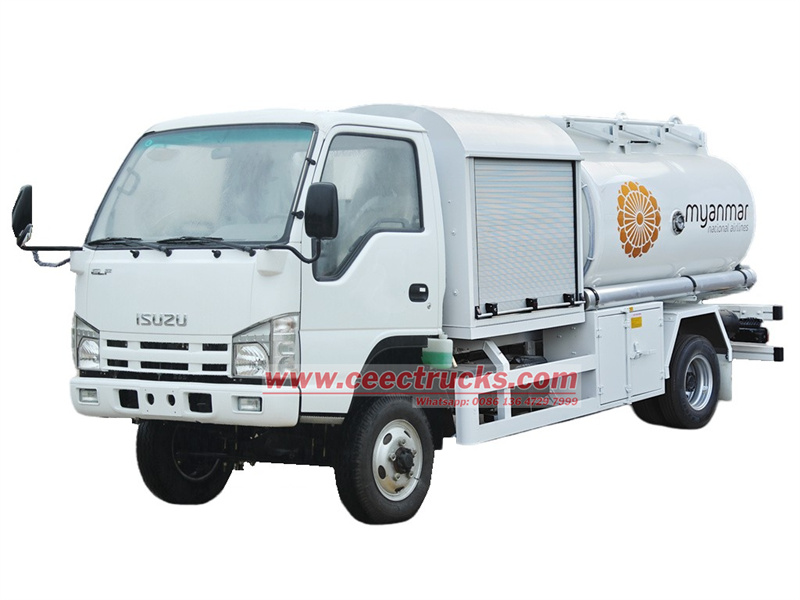

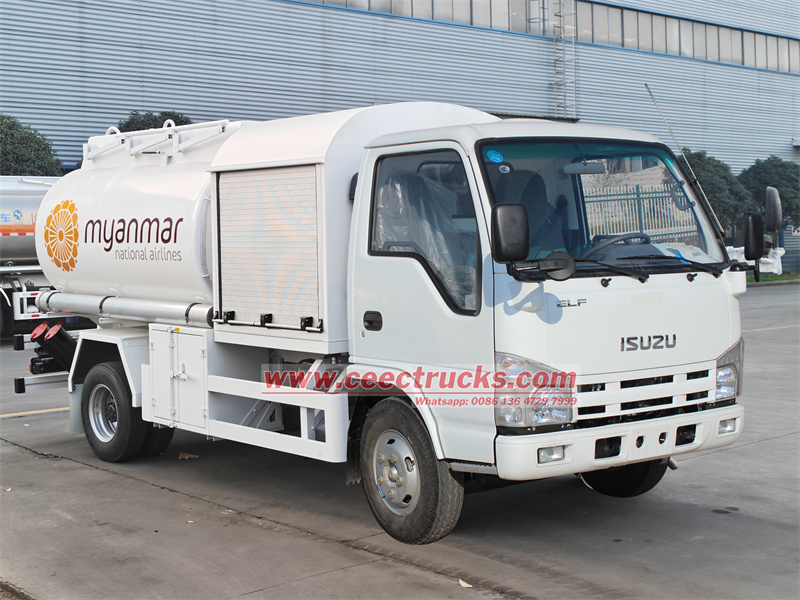

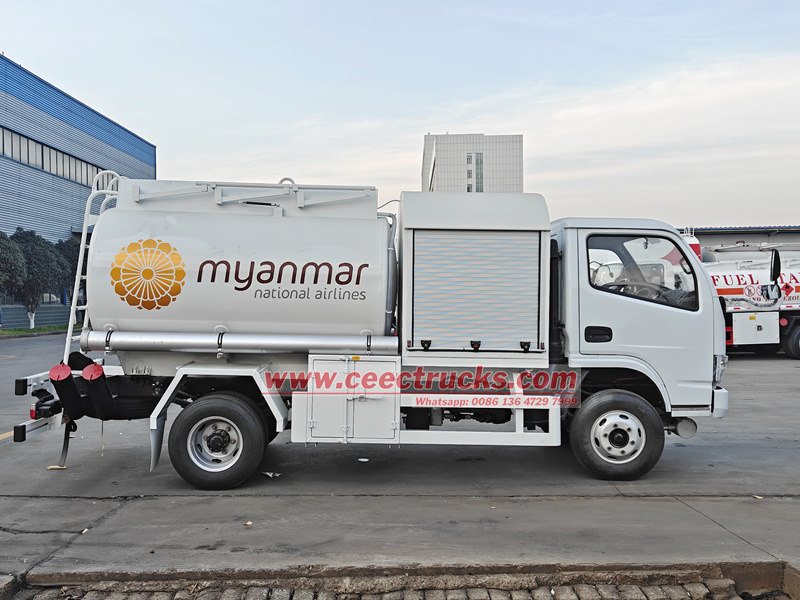

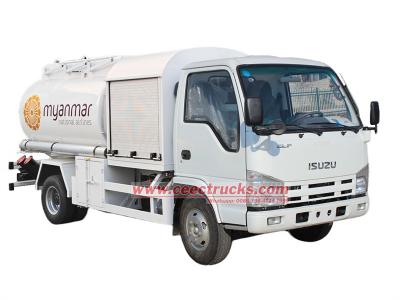

* ISUZU mini 5000 Liters Aircraft Refueling Tanker Truck

Isuzu 100P 5cbm aviation jet fuel truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

▶ Features:

★ Japanese ISUZU 4KH1 diesel engine, 100,000 Km without prblem.

★ MSB 5 shift manual gearbox, golden partner, lower fuel consumption

★ Smaller ISUZU 100P newly cabin, 2 seats

★ Aluminum alloy jet fuel tanker, 5000L volume

★ Efficiently jet fuel filter, 400liters/min flow rate

★ Multiple refueling hose reel with gun

★ Integrated control panel

▶ ISUZU 5000Liters Aircraft Refueler Truck Parameters :

▶ Isuzu 5CBM Aviation Jet Oil Refueler truck Component :

ISUZU smaller 100P jet fuel tanker truck is specialized customized for aircraft refueling. Which build based on original Japanese ISUZU truck chassis, matched with specialized refueler upper body kit, including alluminum alloy tanker body, stainelss steel fuel pump, specialized fuel filter, hose reel with customized refueling gun, integrated control system.

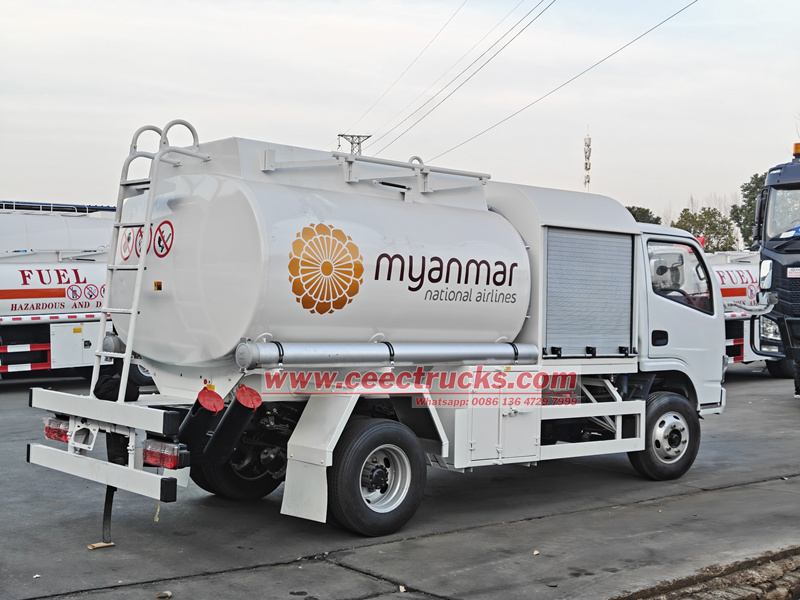

5000L Aluminum Alloy fuel tanker body

Customized Aluminum alloy material fuel tanker body kit, 5182 series aluminum alloy, thickness 5mm, round shape design, in the front matched with independent pump room with hose reel and refueling gun inside, also fuel filter for safety working.

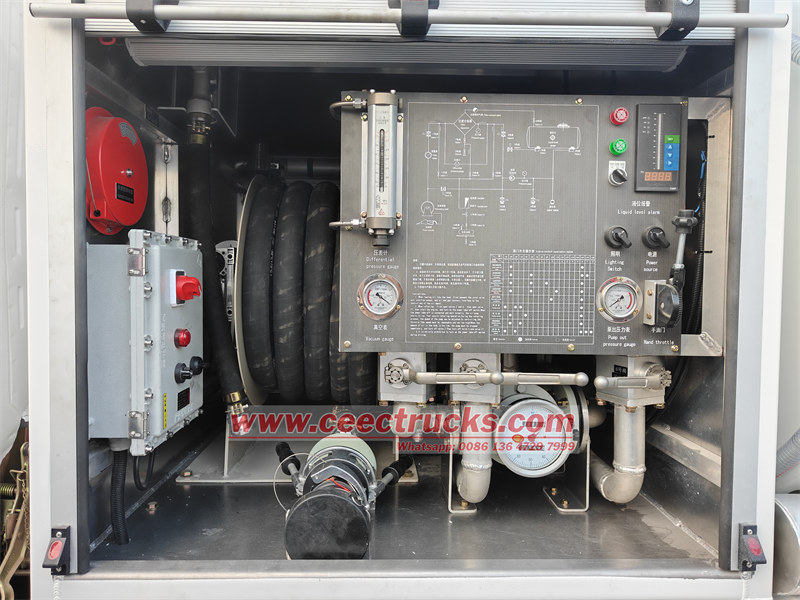

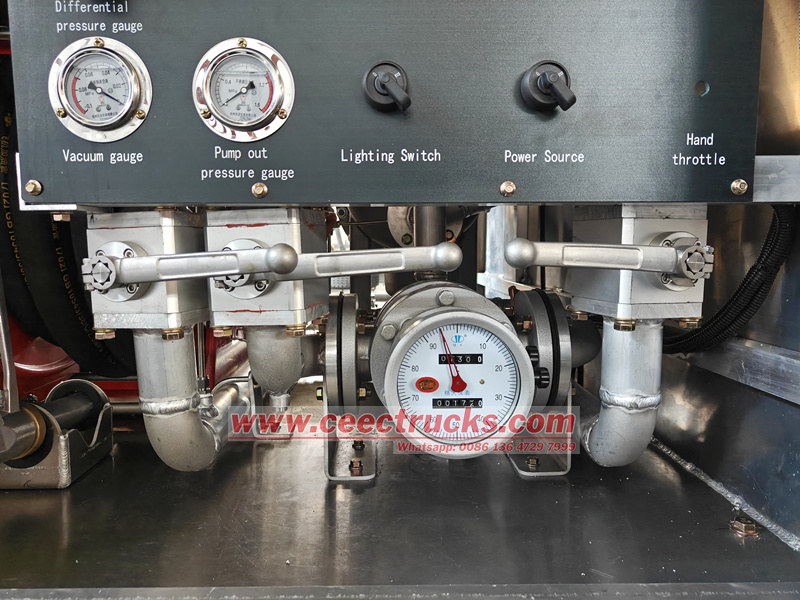

Left View of the Control Room

Left side view of the independ room, which have integrated control panel, language can be English, French, Russia, Arabic, etc. Matched working with independent control valves and flow meter. The hose reel matched with refueling gun for multiple usage.

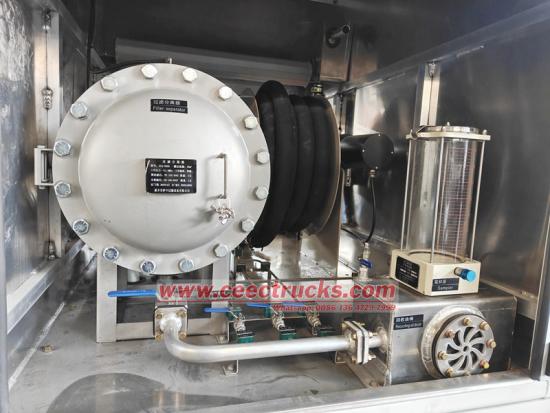

Right side view of the independent room

Right side view of the independent room have the most important component of the aviation fuel truck, the fuel filter, which with model CLQ-0090 model, with efficiently flow rate 400Liter per minute, working pressure 1.0Mpa. efficiently and reliable.
3 pcs Coalescing Filter Elements, model YK-100/400C
2 pcs Separation Filter Elements, model YK-100/400F

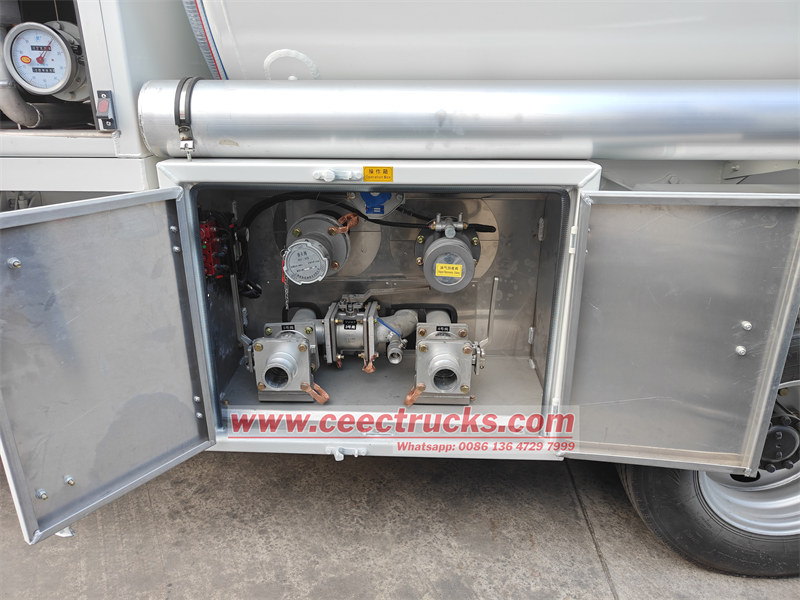

Isuzu jet fuel tanker truck with pump in and pump out valve

Isuzu jet fuel tanker truck with capacity 5000Liters, matched with stainless steel fuel pump, equipped pump in and pump out valves, all with independ control system, also matched with Emergency Stop button for safety.

•

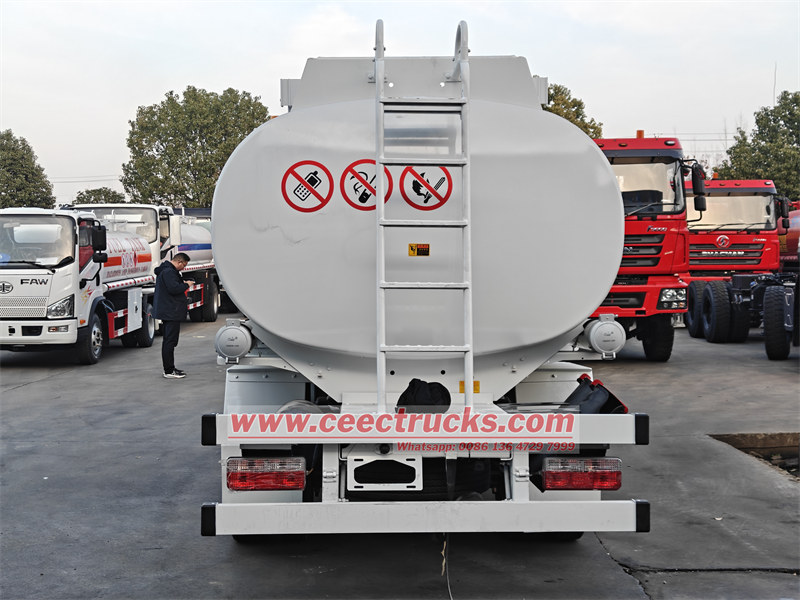

  Back view of fuel tanker with climbing ladder
•

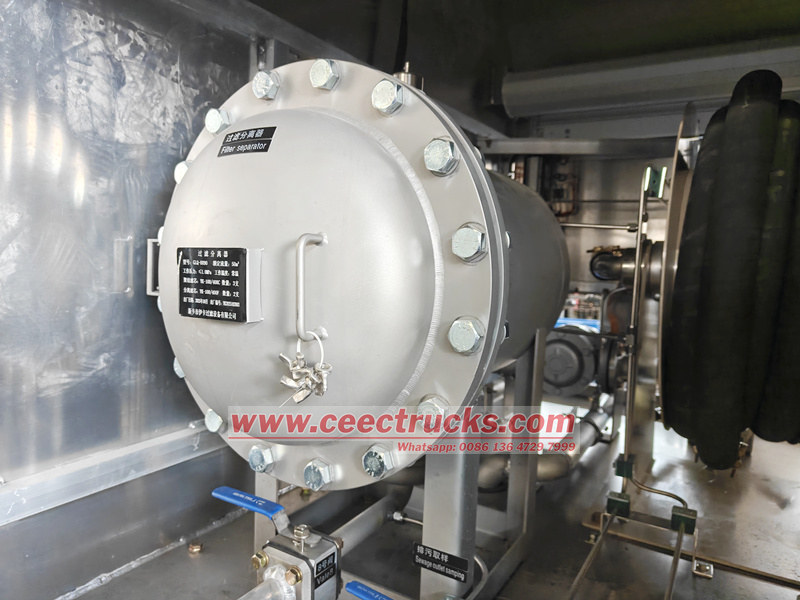

  Fuel filter device GLQ-0090
•

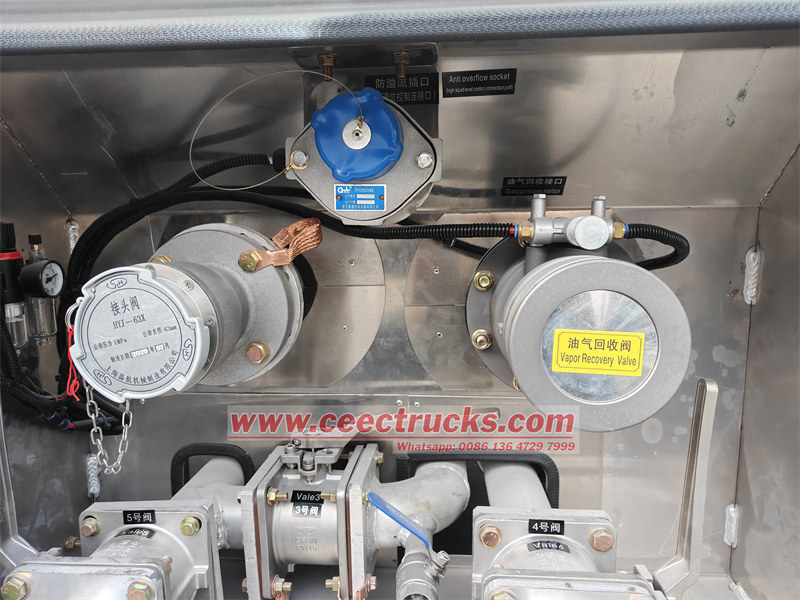

  Pump in and pump out valve

•

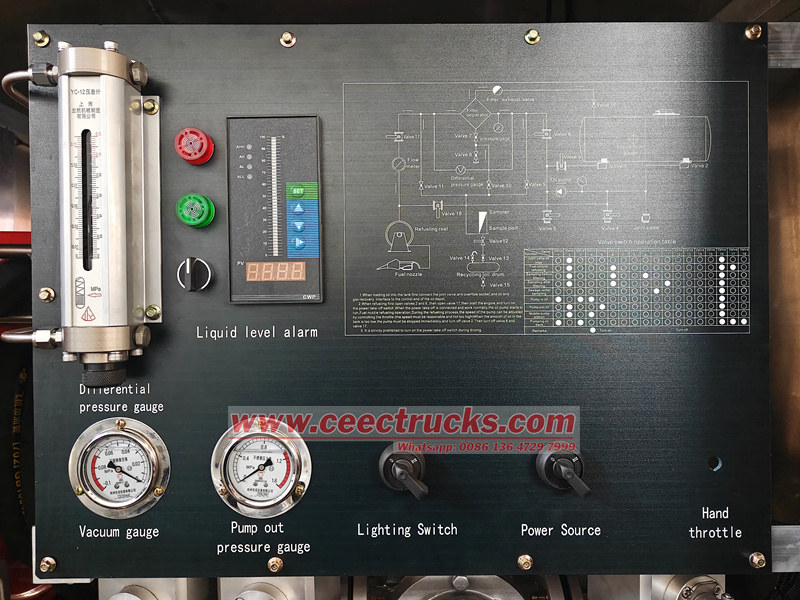

  Isuzu aircraft fuel truck integrated control panel
•

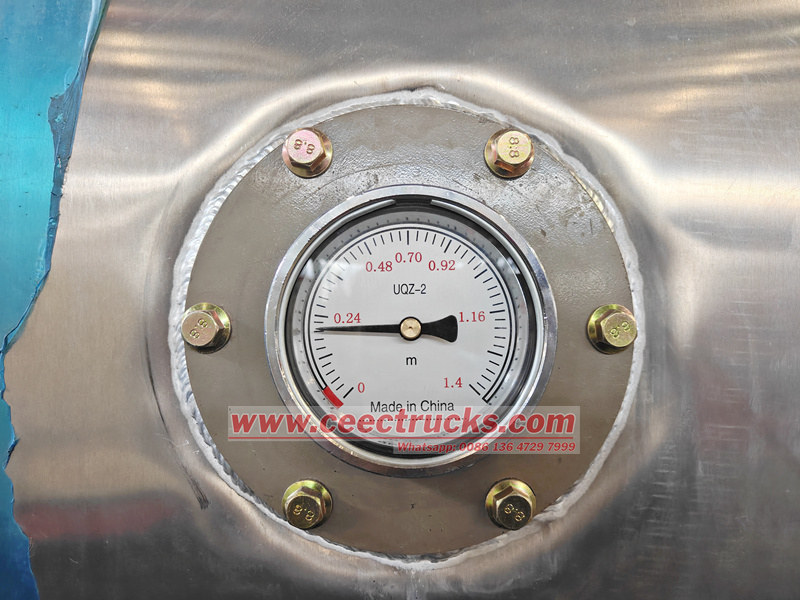

  Fuel level gauge
•

  Pump in and pump out valve

▶ How to use the ISUZU Aviation Jet Refueler Truck :

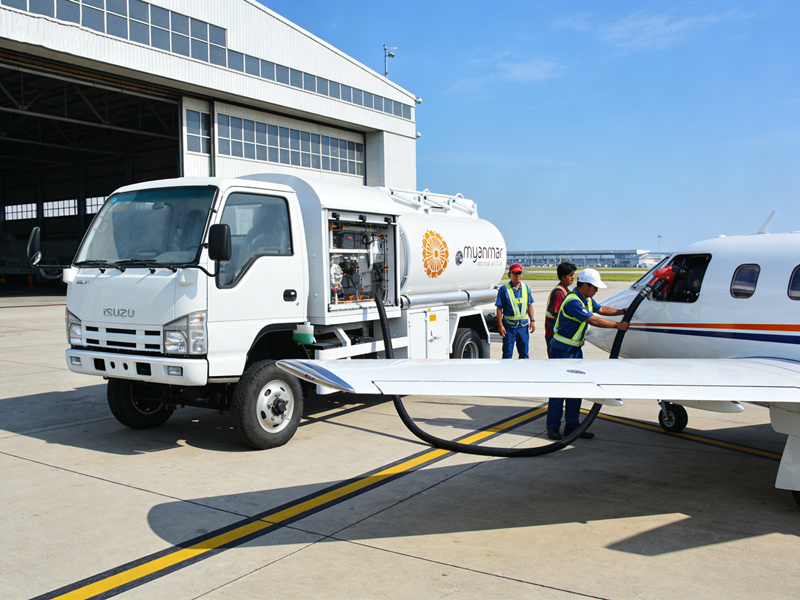

Isuzu aircraft jet fuel tanker truck is designed for multiple aircraft refueling working, after installed with indepentent hose reel, and can be matched working with multiple refueling gun, then can be used for multiple refueling working.

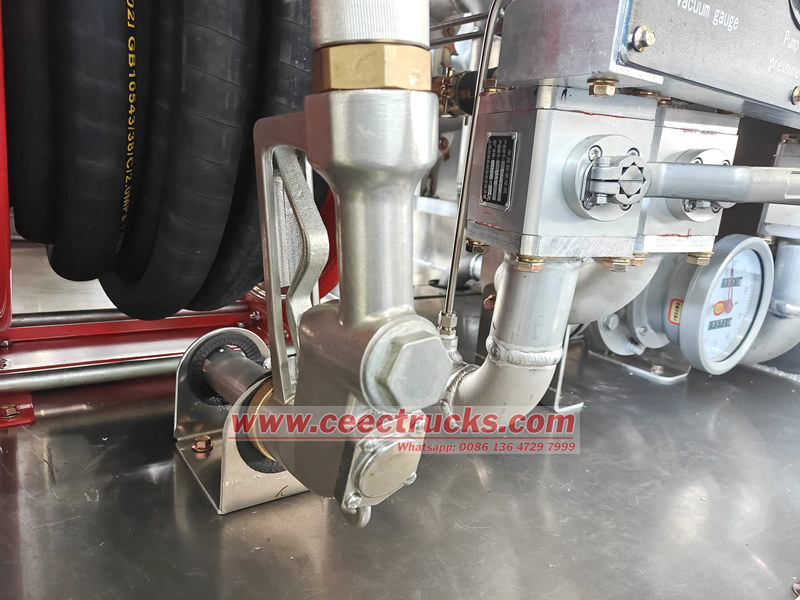

Hose reel with normal 1.5" refueling gun

Normally matched with standard 1" or 1.5" refueling gun, which can be used for multiple equipment refueling process. Available for trucks refueling process, helicopter refueling process, heavy equipment refueling process, etc.

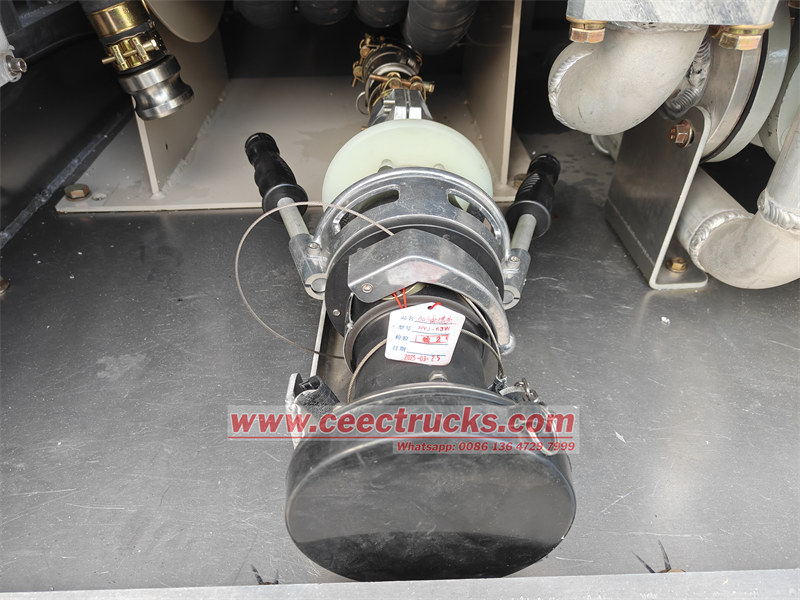

Hose reel with customized DN63 refueling gun

For some clients they also need to have the aircraft refueling truck used for big airplane refueling process, then we can optional to choose special underwing refueling connector, which have details as below and very suitable for heavy aircraft refueling work:

Model: HYJ-63W

Size: DN63 / 63mm

Pressure: 1.0 Mpa
