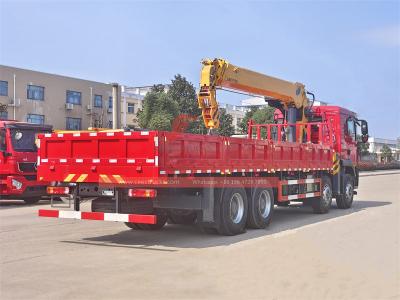

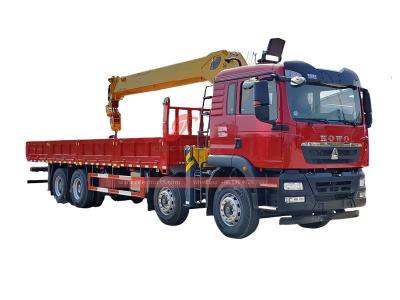

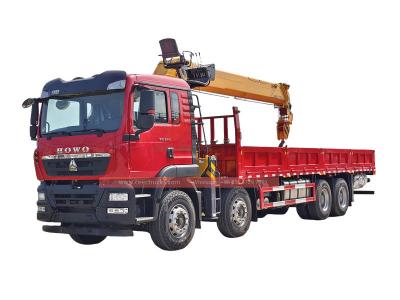

Howo TX cabin truck 20T crane with direct sale

Howo TX 캡 화물 트럭 (20톤 크레인 장착)

그만큼 Howo heavy boom truck is equipped with weichai brand diesel engine with a strong power of 400 HP, which can meet various work needs. The cab have 3 people seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo heavy boom truck is equipped with a t elescopic boom crane with a maximum lifting capacity of 20 000kg and a full 360° rotation.

작업 용량:
20 tons
치수(mm):
13300×2580×2950 mm
휠베이스(mm):
1730+4350+1350 mm
엔진 출력:
400HP
엔진 유형:
WP12S400E201
액슬 드라이브:
8x4, LHD
기어박스:
HW 10 shift
비고:
8X8, RHD drive type avaiable

지금 문의

그만큼 Howo heavy boom truck is equipped with weichai brand diesel engine with a strong power of 400 HP, which can meet various work needs. The cab have 3 people seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo heavy boom truck is equipped with a t elescopic boom crane with a maximum lifting capacity of 20 000kg and a full 360° rotation.

The crane weight is 357 0kg and the installation space is 13 50mm. The control panel can be selected in English or other languages to facilitate users with different needs. Howo cargo truck mounted 20tons crane also provides a variety of optional configurations, such as telescopic boom cranes, hydraulic dump boxes, box thickness and height customized according to needs, and optional remote control boxes.

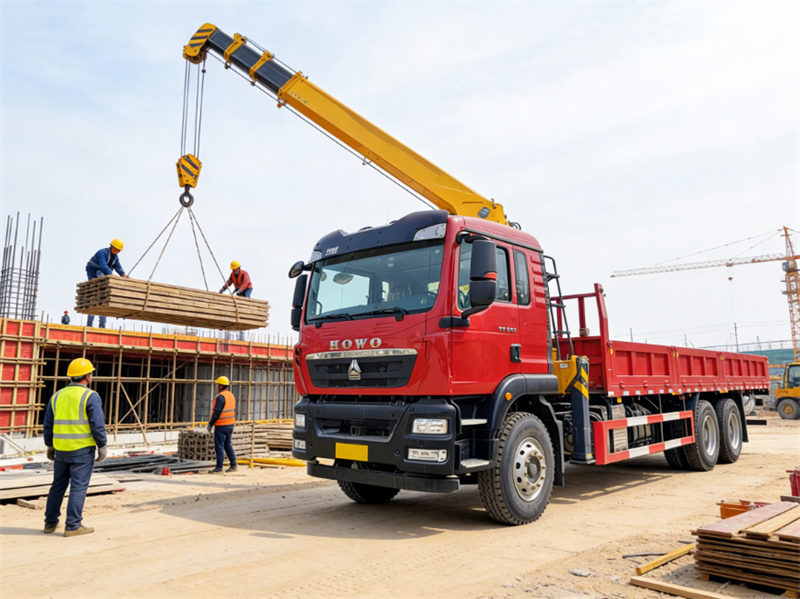

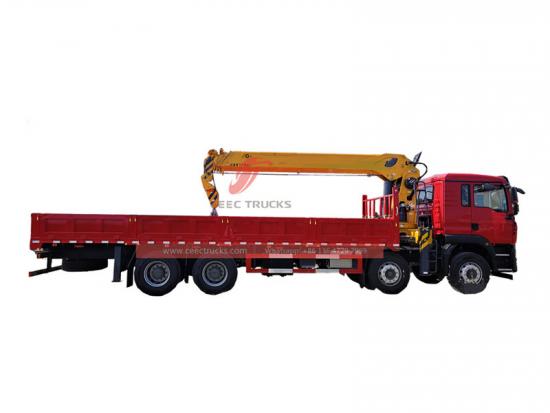

Howo 8x4 cargo truck mounted 20 tons crane

* Howo 8x4 service truck 20ton crane

Howo 12wheeler boom crane truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Howo Boom Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Howo truck chassis, 8x4,8X8 model

WP model with 400HP and emission 12L.

2. Cargo material: 6mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.

3. Crane Brand : XCMG, Palfinger, HIAB, CEEC, etc.

4. Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

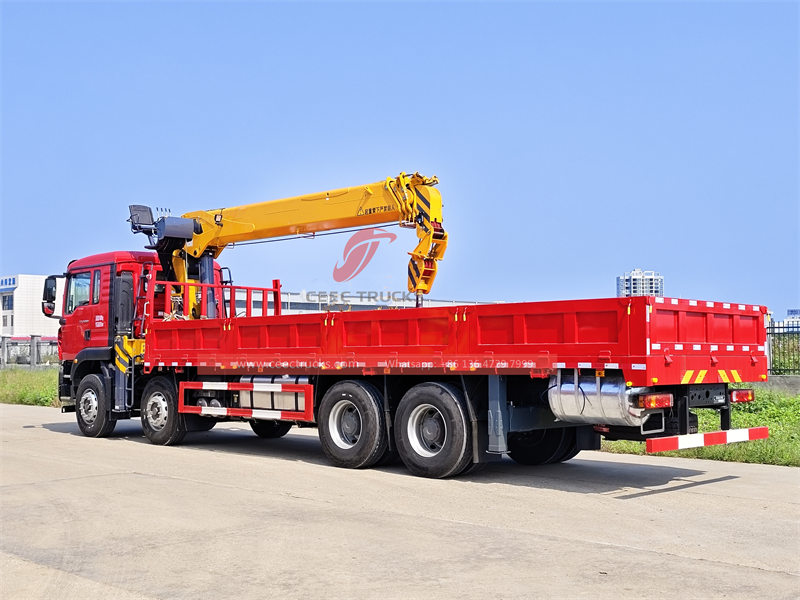

Howo 8x4 cargo truck mounted 20 tons crane

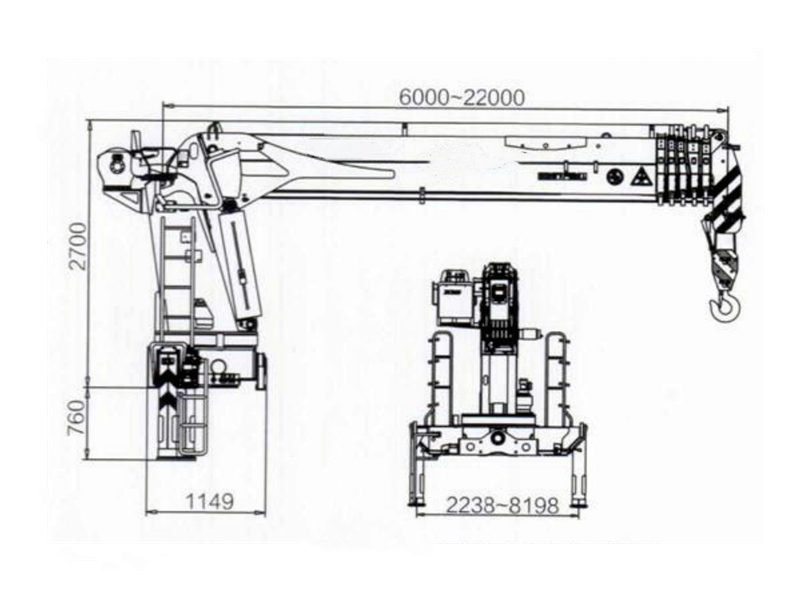

The Howo TX 20ton truck mounted crane is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements. Equipped with an intelligent safety system, including overload protection, torque limiter to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.

✦ Product Parameter of Howo Crane Lorry Truck « « «

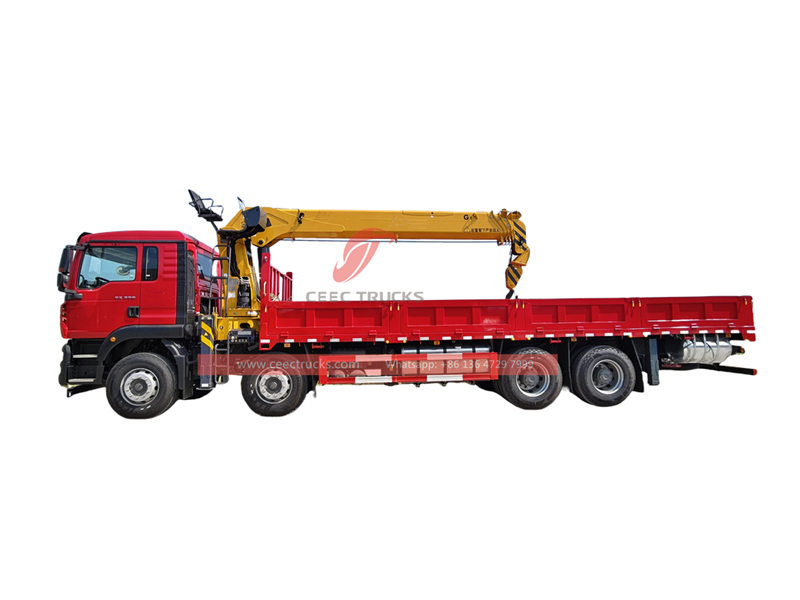

Howo TX 8x4 cargo truck mounted 20 tons crane

Howo 8 × 4 Telescopic B oom C rane T ruck
Vehicle model		CEEC 5 2503GDC		Overall dimensions (mm)	133 00×2 58 0× 295 0
GVW (kg)		33 000		Operational height (m)	23m
Curb weight(kg)		123 00		Max. Speed (km/h)	95
Chassis Description
Chassis Brand			Howo chassis
Cab			Single cab with A/C
Allowable person in cab			3
Wheel base (mm)			1730+4650+1350
Front/Rear overhang (mm)			1 350 /2 3 75
Number of axles			3
Axle	Front axle (kg)		7 500 *2
	Rear axle (kg)		130 00 *2
Traction system			8 * 4
Operation control system			Power steering
Braking system			Air brake
Transmission			HW 10 -speed
Tire specification			12.00 R20
Tire quantity			12 +1
Engine Description
Engine manufacture			Weichai
Engine model			WP12S400E201
Emission standard			Euro 3
Exhaust/output			11596 ml/ 294 kw
Horse power			400 HP
Upper Body Description

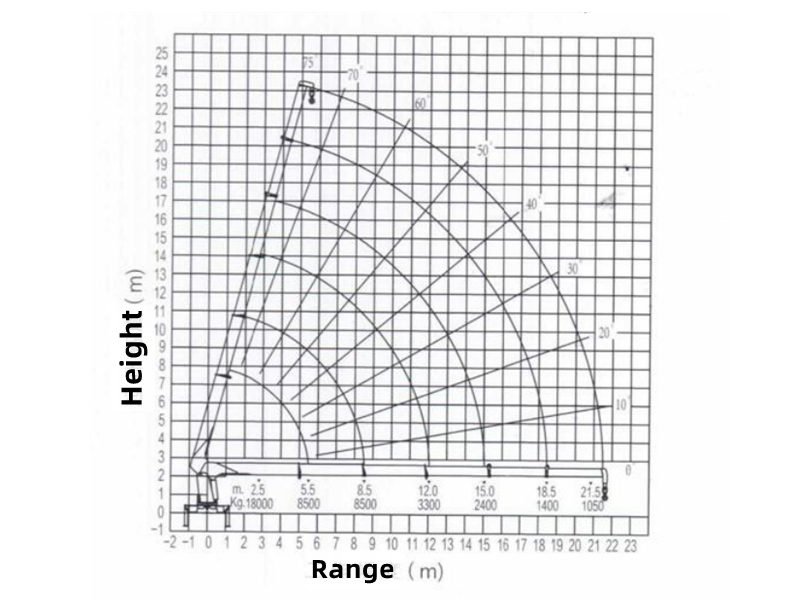

Max. working height (m)			26
Max. working radius (m)			18
Working pressure (Mpa)			23
Crane Type			Telescopic boom crane
Max Lifting Capacity			20 000 kg
Slewing Angle			360° All rotation
Crane Weight			13 50 0 kg
Installation Space			13 5 0 0 mm
Rotation Angle			360° Hydraulic
Control panel			English or Your language
Cargo Box Dimension			71 *002 5 00500 mm*
Cargo Box Material			Q235 High-level Steel
Optional
Knuckle boom crane
Hydraulic tipper box
Box thickness according to requirement
Box height could be nominated
Remote Control Box optional

✦ High load capacity and passability of Howo Boom Truck « « «

♦ The Howo heavy 20 tons crane truck has a 8x4 drive system , rear double-axle drive + front axle steering .

♦ R easonable axle load distribution, strong load capacity, usually 28 tons, suitable for heavy load transportation .

♦ E xcellent ability to escape from complex road conditions such as mud and ramps.

♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.

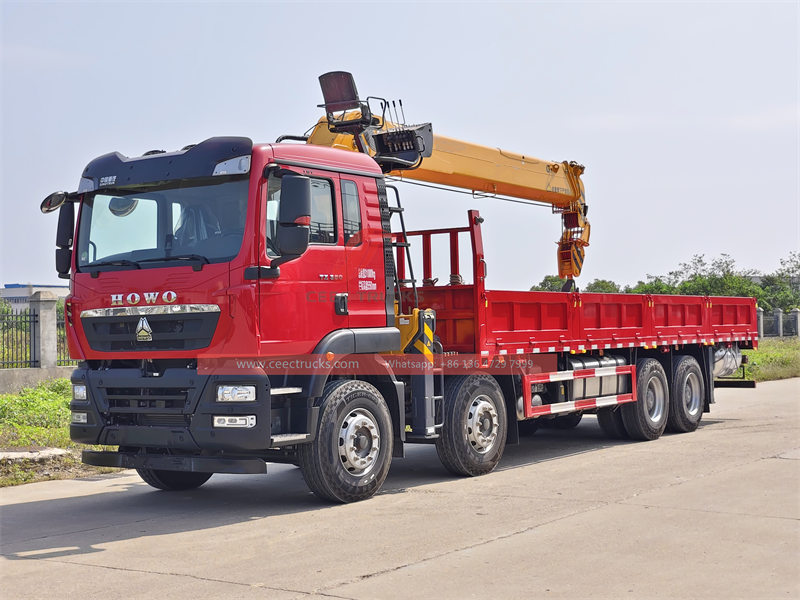

Howo TX cabin 8x4 crane truck

♦ Equipped with Weichai technology engine (such as WP10/WP12) + Sinotruk HW series gearbox + wheel reduction bridge .

♦ L ow speed and high torque characteristics are outstanding, suitable for heavy load climbing and continuous operation.

♦ The Weichai engine has a life of more than 800,000 kilometers .

♦ K ey parts (such as hydraulic pumps and crane slewing mechanisms) are top brands , with a low failure rate.

✦ Structural Strength and Stabili ty of Howo crane truck « « «

♦ The boom is made of high-strength steel with excellent bending and torsion resistance.

♦ The H-shaped outriggers are horizontally unfolded and the width is adjustable.

♦ The larger the support area, the stronger the anti-overturning ability.

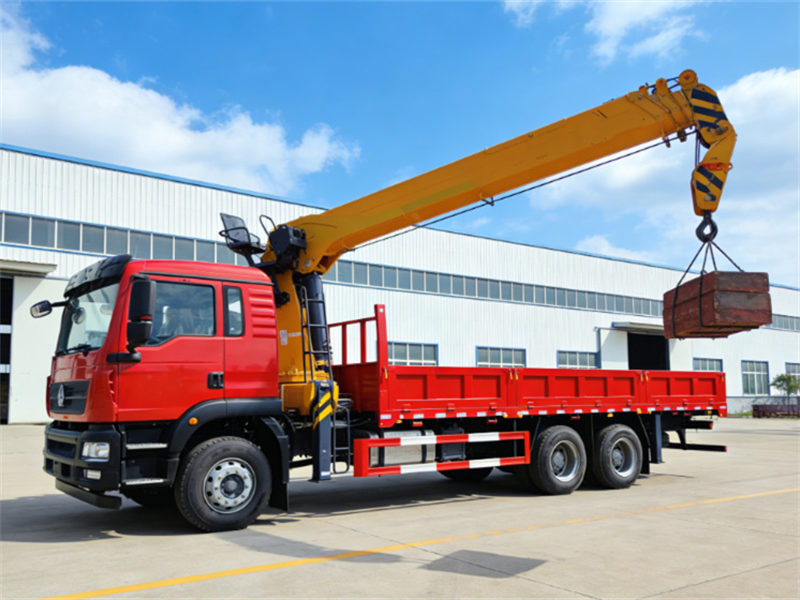

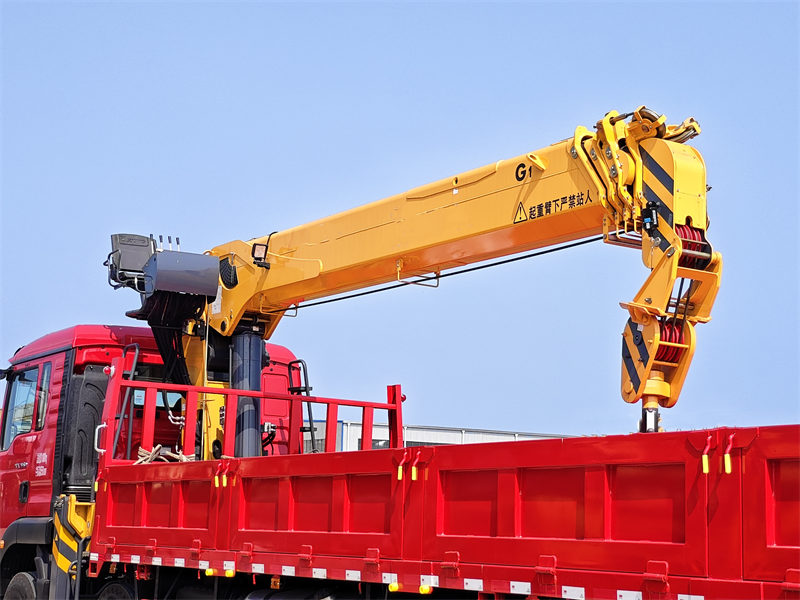

Howo 20tons crane truck

♦ The multi-pump confluence technology enables the boom to move synchronously and smoothly, without jamming or shaking, in telescopic, slewing and amplitude adjustment.

♦ Key valve (such as balancing valves and overflow valves) use high-quality domestic and foreign brands to reduce the risk of internal leakage.

♦ The surface of the boom is sandblasted + epoxy zinc-rich primer + polyurethane topcoat to adapt to salt spray and humid environments.

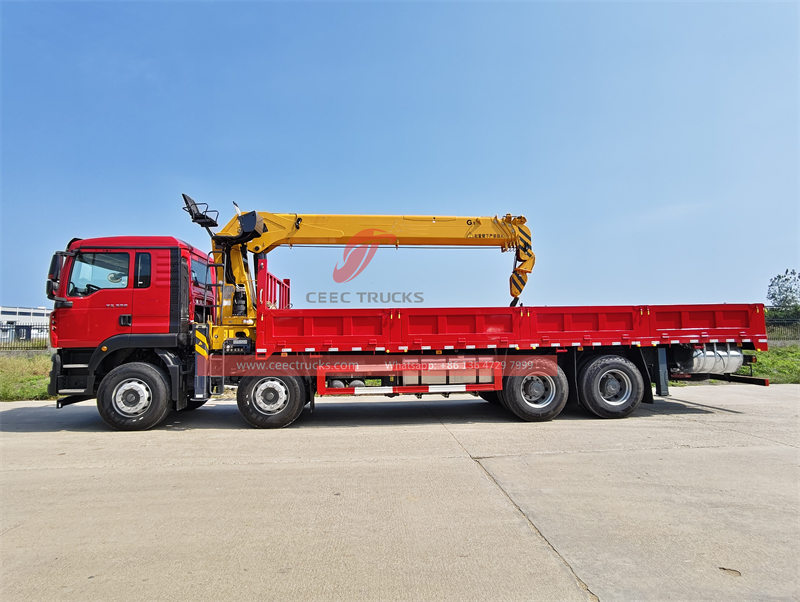

Howo 20 tons crane lorry truck

✦ Optional Equipment of Howo crane truck « « «

Due to the Howo 20 ton crane truck has a lifting height of up to 26 meters and a certain load-bearing capacity.The boom truck can combine it with various functional equipment to achieve multi-functionality and maximize the value of the crane truck.

Garbage Grabber
Wood Grabber
Lifting Electromagnetic Chuck

Planting Drill Bit
Secondary Hook
Manlift Bucket

✦ Application of Howo Boom Truck « « «

1. At construction sites for highways , bridges, and railways, the Howo 20-ton boom truck, with its heavy lifting capacity and long boom, can efficiently complete the on-site loading, unloading, and installation of precast concrete beams, large steel formwork, bored pile components, and heavy construction machinery.

Howo 20 tons crane truck

2. In wind power, electric power,and mining industries, the Howo 20-ton boom truck serves as a mobile "heavy-duty maintenance station," capable of lifting large transformers, wind turbine components, and replacement parts for mining machinery.

3. In municipal engineering projects,the Howo 20-ton crane lorry truck can be used for lifting heavy drainage pipes, large sculptures, and ancient trees in gardens.

Howo 20 tons crane truck
