콩고에서 사용되는 HOWO NX 구조 견인 트럭

이 무거운 duty wrecker, built by CEEC Trucks Group, utilizes the Howo NX cabin 6 x 4 drive chassis and is equipped with a powerful Howo WP10.340E22 diesel engine (3 4 0 HP /1250N . m of torque) and an HW1 9710 10 -speed transmission. Combined with an HF9-ton front axle and HC16-ton rear axle, it ensures exceptional power, load-bearing capacity, and reliability. It incorporates two 1 2 ton s hydraulic winches, resulting in an impressive rated towing capacity of 30 tons, making it ideal for handling accidents involving large trucks, buses, and construction machinery.

작업 용량:
18tons
치수(mm):
10900X2580X3325 mm
휠베이스(mm):
4300+1370mm
엔진 출력:
340HP
엔진 유형:
WP10.340E22
액슬 드라이브:
6x4,LHD
기어박스:
HW19710(10 Forward, 2 Revise)，manual
비고:
With two 10tons hydraulic winches

지금 문의

이것 heavy duty wrecker , built by CEEC Trucks Group, utilizes the Howo NX cabin 6 x 4 drive chassis is equipped with a powerful WP10.340E22 diesel engine,3 4 0 HP /1250N . m of torque,HW1 9710 10 -speed transmission. Combined with an 9 ton front axle and 16 ton rear axle, it ensures exceptional power, load-bearing capacity, and reliability. It incorporates two 1 2 ton s hydraulic winches, resulting in an impressive rated towing capacity of 18 tons, making it ideal for handling accidents involving large trucks, buses, and construction machinery.

The Howo 6 x 4 tow truck is equipped with a robust hydraulic outrigger system (rated to lift 1 0 .5 tons per outrigger), providing a wide support span and ensuring safety and stability in heavy duty rescue operations. The Howo NX luxury cabin , 400L large capacity fuel tank, 24V electrical system, complete warning lighting (warning lights, strobe lights) and tool box and other accessories make it a large scale professional towing and rescue equipment with comprehensive functions and powerful performance.

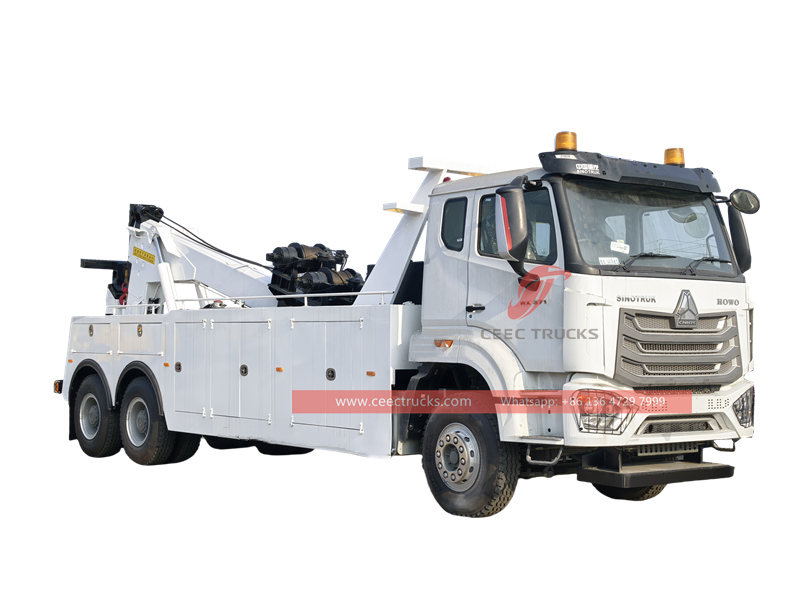

HOWO 18T heavy rescue wrecker truck

*HOWO 18T Heavy Rescue Wrecker Truck

Conjoint Integrated Wrecker Tow Truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ. Product Defination and Introduction:

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model

MC model with 34 0HP and Euro 2,3

2. Upper Body material: 6mm thick high-quality steel for prolonged service lier
carbon steel or stainless steel can be choose.

3. Capacity : maximum lifting height of 12.3 meters,

maximum lifting capacity of 30 tons (within the operating radius)

360° slewing capability

4. Options Equipment: High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 12ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories

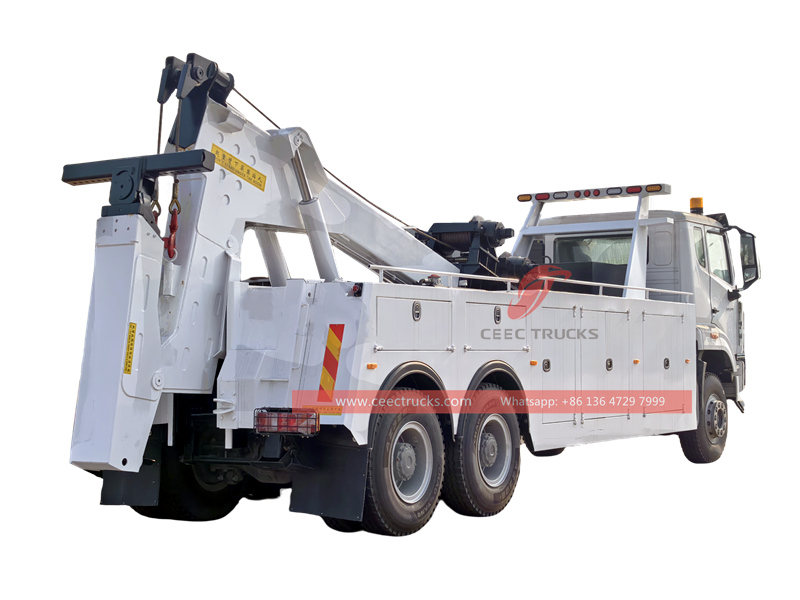

Sinotruk HOWO 6X4 Recovery Truck

» Ⅱ. Product Parameter for Howo 6x4 18T wrecker truck

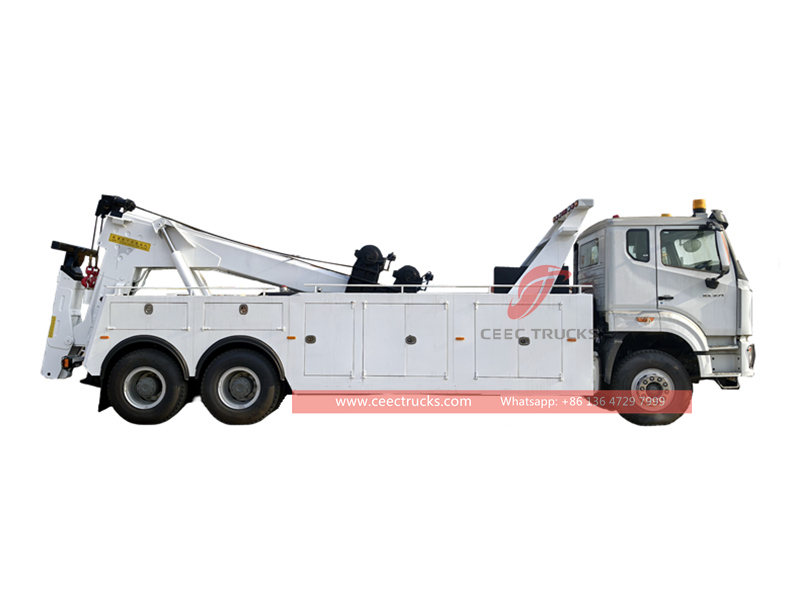

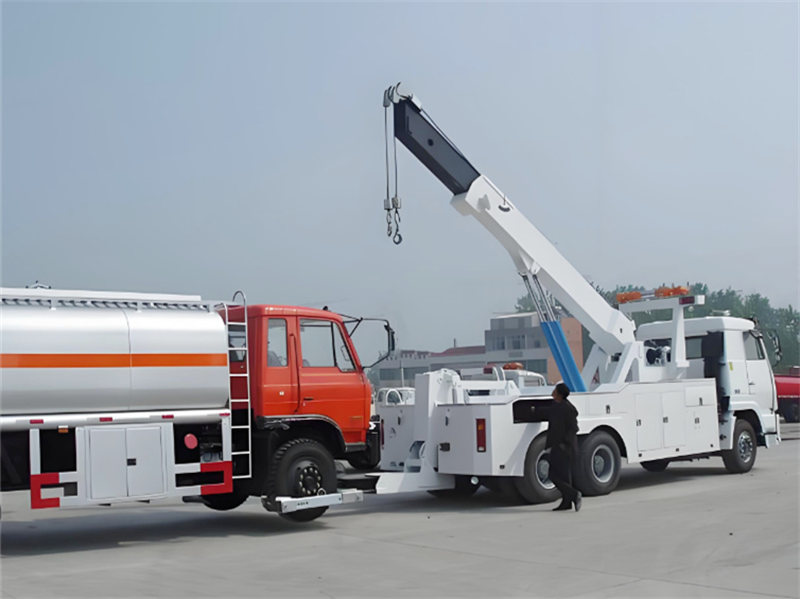

Howo NX 6x4 heavy tow truck

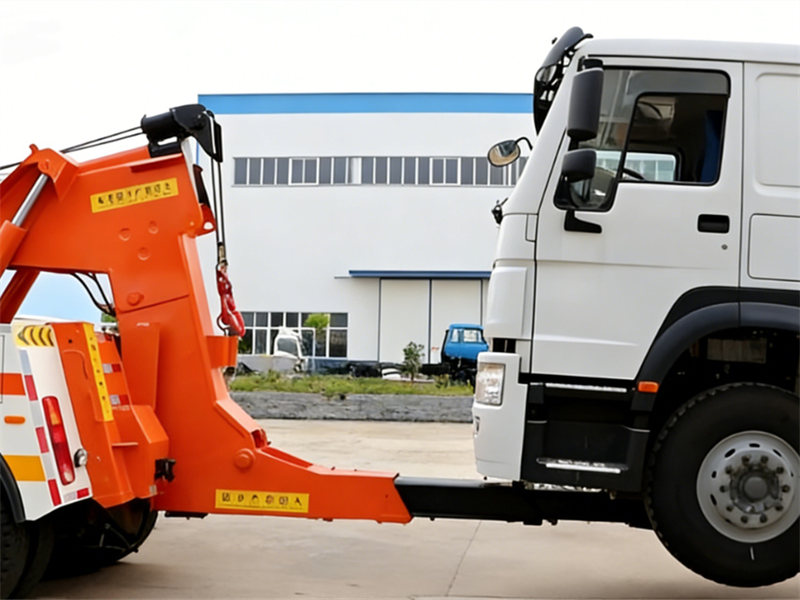

Howo NX Heavy 18tons Tow Truck
Chassis parameters
Chassis brand		SINOTRUK	Vehicle brand	C EEC Group
Overall dimensions		109 00X2580X3325mm	Wheel base	4 3 00 +1370 mm
Approach/departure angle		16/19°	Maximum speed	90km/h
Cab	Configuration	NX a row and a half deluxe cab(with sleeping berth), allowable 2 passengers
	Color	White , other color is optional
Engine	Model	WP10.340E22
	Emission	Euro 3
	Type	6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
	Rated power	340hp, rated power speed 2 2 00rpm
	Displacement	9.726 L
	Max.torque	1400N.m
	Bore x stroke	126x155mm
	Manufacturer	Howo
Tire	Size	11.00R20
	Number	6+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	400L iron oil tank
Front axle	9 tons
Rear axle	1 3*2 tons
Drive form	6 X 4
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	Gearbox HW1 9710 , 10 speed forward 2 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Wrecker structure parameters
Outriggers	Rated Lifting Weight		1 0 500 kg
	Rated Lifting Fully Extended Weight		4500 kg
	Longitudinal Span between Front Outrigger and Rear Outrigger		7350 mm
	Transverse Span of Front Outriggers		5490 mm
	Transverse Span of Rear Outriggers		4387 mm
Rated Towing Weight	18 000 kg
Length of Cable Wire	25 m
Equipment	High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories

» Ⅲ.Product Details & Advantages:

1. Extreme load-carrying and power performance

♦ 20 ton towing capabilities: This industry-leading load design can handle heavy trucks, construction machinery, and other large vehicles involved in accidents, covering 99% of highway rescue scenarios.

♦ Weichai 3 4 0 HP engine: Low speed, high torque (1 25 0 Nm @ 21 00 rpm) adapts to complex road conditions like mountainous terrain and long slopes, while offering superior fuel economy in its class.

♦ Howo NX 6 x 4 chassis and 1 3 ton rear axle: Multi leaf spring suspension and a highly rigid frame ensure structural stability under heavy loads.

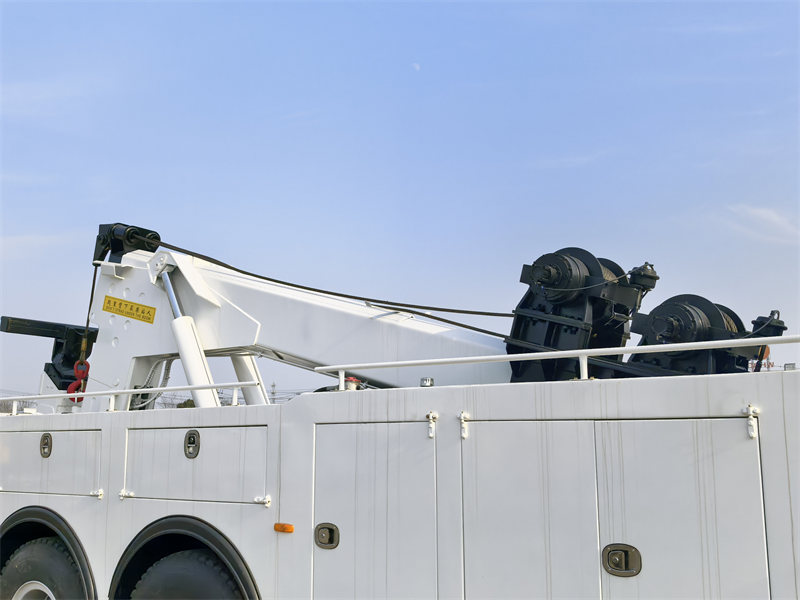

Sinotruk HOWO 6X4 Type 20t Capacity Heavy Duty Tow Truck

2. Efficient Operational Adaptability

♦ Optional crane: c overs multiple angles of the accident scene without frequent maneuvering, making it particularly suitable for rescue operations in confined spaces such as overpasses and tunnel entrances.

♦ Dual 1 8 ton hydraulic winches + 25m steel cable: Collaboratively enable complex operations such as righting overturned vehicles and towing in deep trenches, improving efficiency by over 40%.

♦ Long-span outrigger system (5.49m front / 4.38m rear): Maintains stability even on soft surfaces, reducing the risk of rollover.

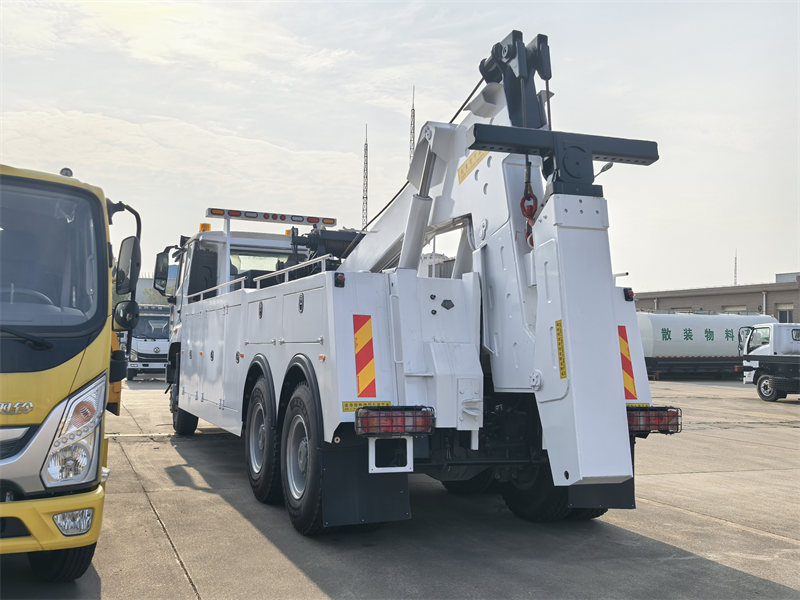

HOWO 6x4 Conjoint Integrated Wrecker Tow Truck

3. Optimized operational economy

♦ 400L fuel tank and low-drag chassis design : enable a range of over 800 kilometers on a single refueling, making it suitable for long-distance, interprovincial rescue missions.

♦ O ne and a half row luxury cab (with sleeper berth) accommodates: 3 person crews with rotating rest breaks, reducing labor costs and enabling continuous operation.

♦ Standardized hydraulic components: 80% commonality in repair parts reduces ongoing maintenance costs.

» Ⅲ.Product Details & Advantages:

1. Disasters or accidents often block roads with debris, wrecked vehicles, etc. The Howo heavy wrecker truck, with its powerful towing, lifting, and clearing capabilities, can quickly remove heavy obstacles.

2. Hazardous materials vehicle accidents, suspended or unstable heavy vehicles/components, are themselves high-risk sources. The Howo heavy wrecker truck can safely and efficiently handle and transfer them professionally.

3. Emergency on-site rescue equipment (such as construction machinery and generator trucks), if malfunctioning or stuck, will seriously affect the overall operation. The Howo NX tow truck has the capability to quickly rescue and transport heavy equipment.

----------------------------------------------------------------------------------------------------------------

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5. promptly delivery. any order is welcome.

We CEEC also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Euro 3 WEICHAI WP10.340E22 engine, super powerful

★ Manual HW19710 10-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO wrecker truck exporter

★ Training service for Sinotruk tow truck.

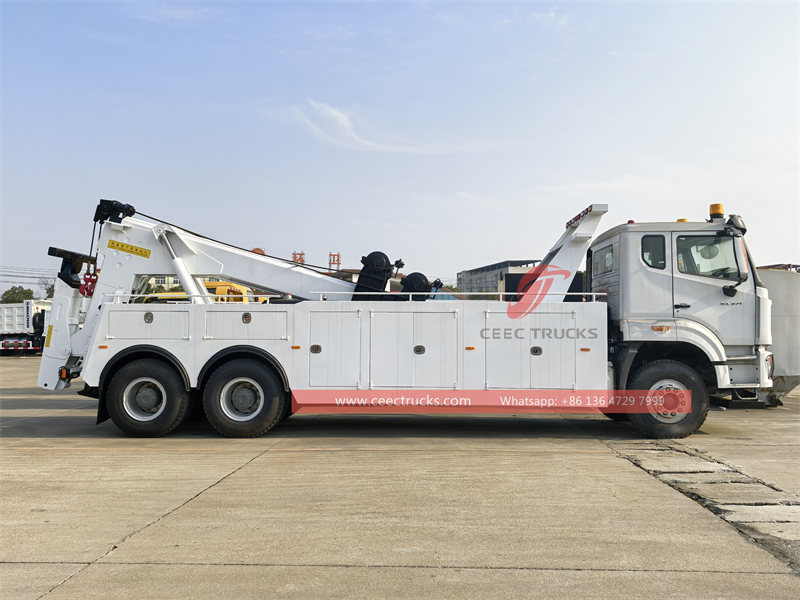

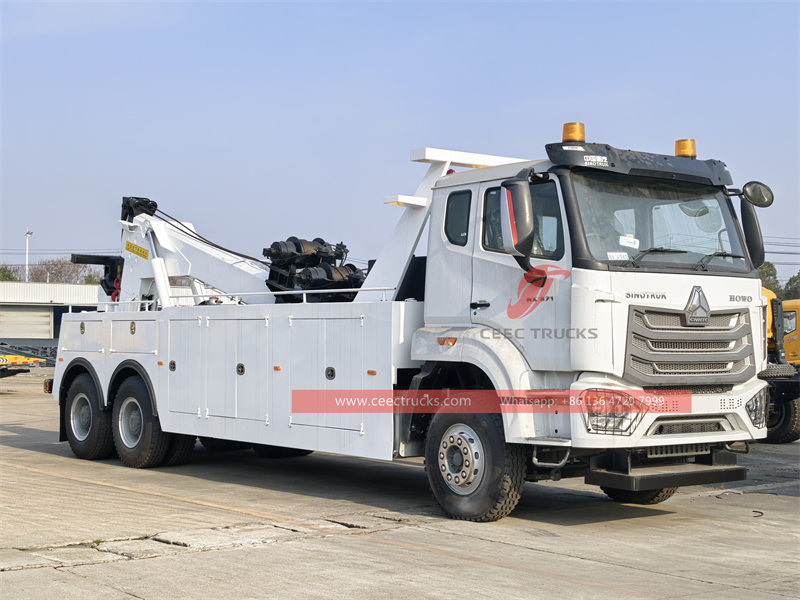

HOWO 18 ton tow truck
