What is Beiben hook loader garbage truck?

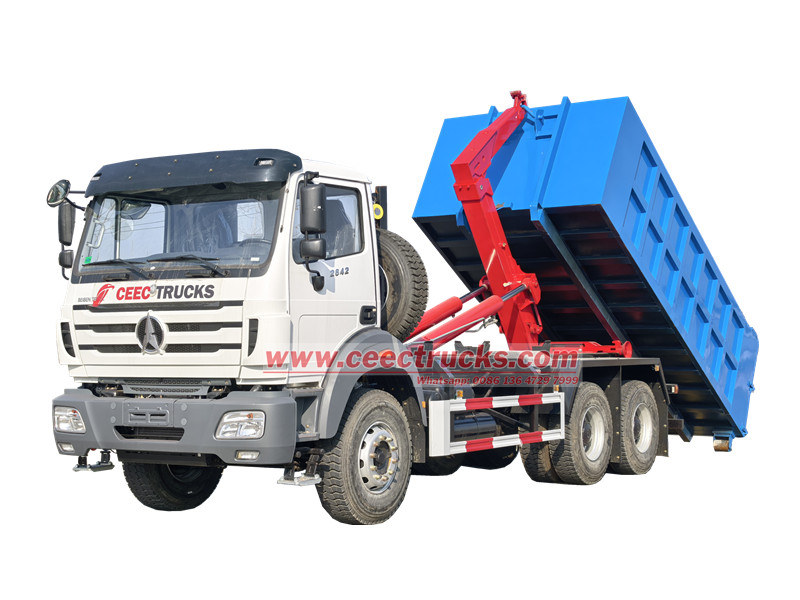

Beiben Hook Loader Truck, also known as the Beiben Hooklift Garbage Truck, is a specialized vehicle that integrates garbage collection and transportation into one. Its c ore feature is the powerful hooklift system. The advantage of Beiben hook loader lies in the detachable feature between the truck body and the garbage containers—one truck can be equipped with multiple containers for cyclic transportation, fully enhancing the vehicle's transport capacity.
Main Structure of Beiben Hooklift Garbage Truck
Beiben heavy-duty hooklift garbage trucks typically consist of a Beiben chassis, hooklift, hydraulic system, locking mechanism, and other main components.
Beiben 20-ton Hooklift Bin Lorry Parameters
|
Chassis |
Beiben 2642, 420HP engine |
|
Lifting capacity |
20 ton |
|
Discharge Work Cycle Time |
≤110 S |
|
Container volume |
20CBM |
|
Container size |
5600×2300×1500 mm |
|
Control system |
Manual + remote control |

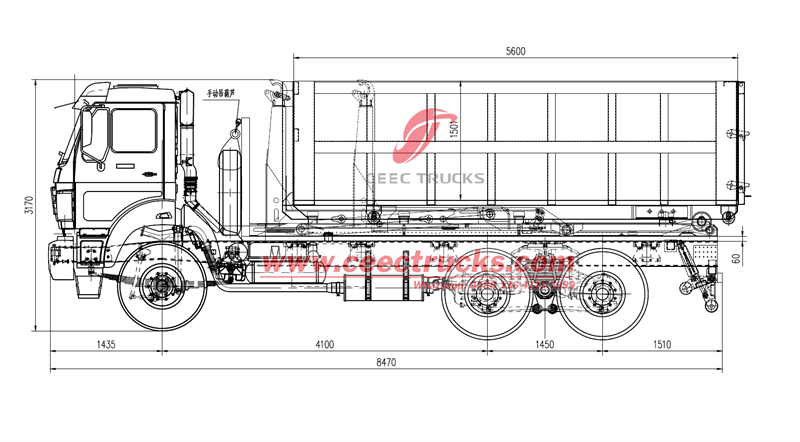

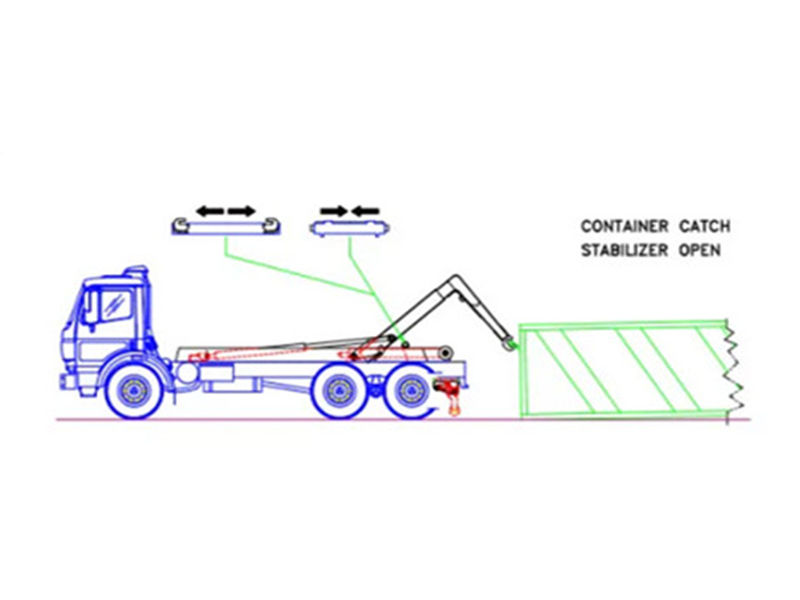

Technical drawing of the Beiben 20-ton hook loader garbage truck:
Working Principle

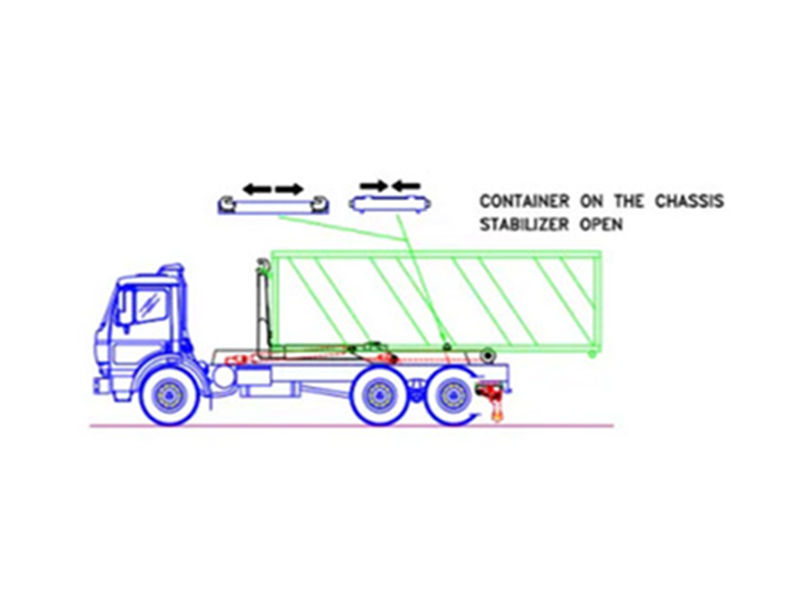

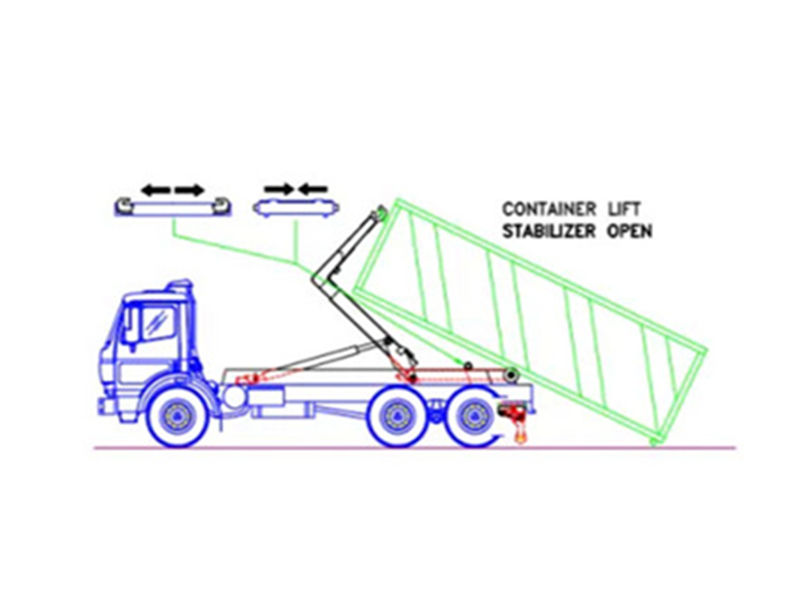

The Beiben hook loader garbage truck uses the engine to drive the hydraulic system, and achieves container lifting, transportation, and unloading through the telescopic and lifting hook arm mechanism.
Advantages of the Beiben Hook Lift Bin Truck:
• High Operational Efficiency: One truck with multiple containers, enabling cyclic transfer
• Fast Loading/Unloading Speed: Loading/unloading cycle time ≤110 seconds

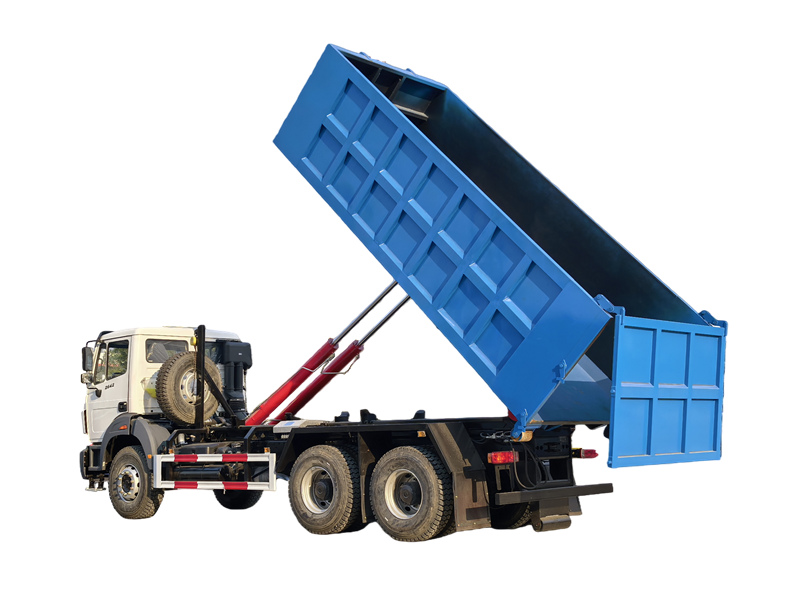

• Versatile Functionality: Can be used as both a garbage truck and a dump truck
• Easy Operation: Manual + remote control operation
