HOWO 6x4 20cbm rear loader compactor truck

20cbm Howo 후방 리프팅 쓰레기 수거 트럭

Howo 6x4 20m³ 쓰레기 압축 트럭은 Sinotruk Howo NX 6x4 섀시를 기반으로 개조되었으며, 휠베이스는 4600+1350mm입니다. Sinotruk WD615.47 엔진(HW19710)과 10단 변속기가 장착되어 있습니다. 상부 적재함은 부식 방지 및 방청 처리된 20m³ 용량의 아치형 탄소강 압축 쓰레기 컨테이너이며, 완전 밀폐형 후면 덮개와 매달린 형태의 적재함 하역 장치를 갖추고 있습니다. 쓰레기 적재 및 하역은 CAN-BUS 전자 제어 시스템을 통해 제어되며, 구체적으로는 운전석의 전자 제어 박스, 운전석 측의 유압식 수동 조작 레버, 그리고 적재함 하단의 전자 제어 박스 등 세 곳의 제어 지점을 통해 조작됩니다.

작업 용량:
20cbm
치수(mm):
10720 x 2500 x 3400 mm
휠베이스(mm):
4600+1350mm
엔진 출력:
371HP/273kW
엔진 유형:
SINOTRUK WD615.47
액슬 드라이브:
6x4
기어박스:
Sinotruk HW19710 10-speed,manual
비고:
Payload capacity can be customized

지금 문의

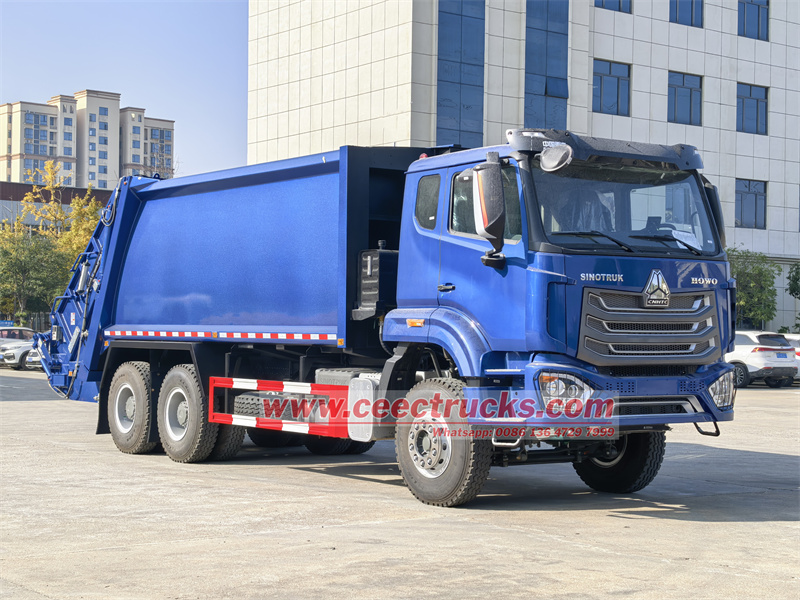

20cbm Howo 트럭용 폐기물 압축기

The 20cbm Howo rear lifting garbage truck is designed for efficient sanitation operations, featuring a heavy-duty chassis and intelligent compression technology. Its 20 cubic meter arc-shaped carbon steel body boasts excellent sealing, combined with a two-way compression system, can carry more garbage. At its core is the intelligent CAN-BUS electronic control system, which allows for precise operation of the entire process—including bin tipping, scraper compression, and push-loader unloading—through three control points: the cab, the side of the vehicle, and the tailgate. Integrating automatic loading, efficient compression, and sealed transfer, it significantly improves garbage collection efficiency and sanitation standards.

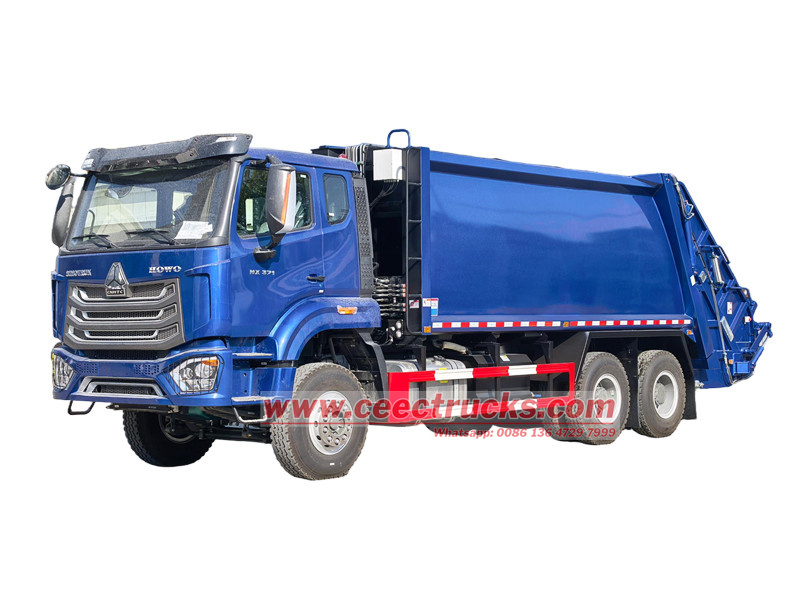

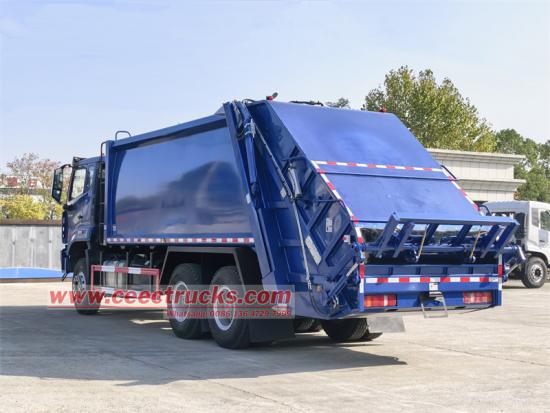

HOWO 20 CBM back loading garbage truck

Key Feature:

----HOWO NX chassis, perfect performance

---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compact body capacity from 3 to 35 Cubic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Product Parameters:

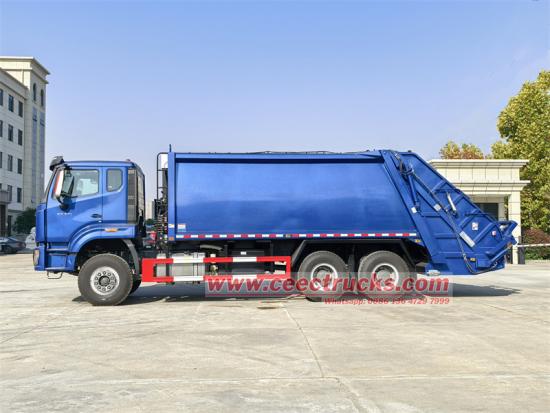

HOWO 6x4 20cbm rear loader compactor truck
Chassis
Dimensions	*10,720 2,5003,400 mm*
GVW/Curb Weight	25,000/10,100kg
Wheelbase	4,600+1,350mm
Front/Rear Axle	7T/18T(2 axle)
Tire	12.00R20, 10+1 tires
Engine
Type	Diesel, In-line 6-cylinder, water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercooling
Make/Model	SINOTRUK / WD615.47
Horse Power （ HP)	371 HP/273kW
Max torque	1500N.m
Rated speed	2200rpm
Max torque speed	1100-1600rpm
Fuel tank (L)	400L
Displacement	9.726L
Emission standard	Euro 2
Transmission
Model	SINOTRUK/HW19710
Gears	10F+2R
Operation	Manual
Cabin
Driving	SINOTRUK HOWO NX 6X4, Left Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	20 CBM
Material	Weather-resistant steel
Design	Sealed leakage proof
Compaction Ratio	3:1- 6:1
Hopper Volume	2m3

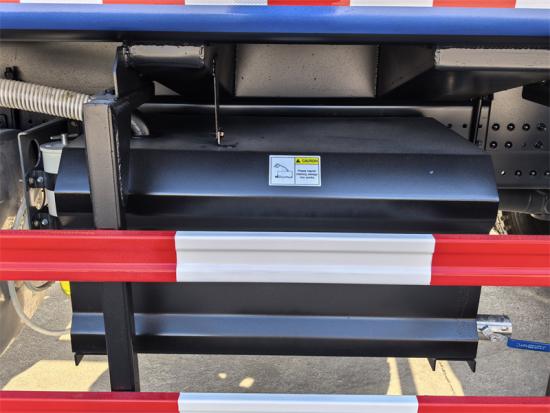

Sewage Tank	200L + 200L
Flip mechanism	Without, direct trash dumping
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear loading and discharging
Discharging system	Horizontal ejection
Control System	Siemens Automatic CAN system : Front control in the cab, rear button control, and manual control

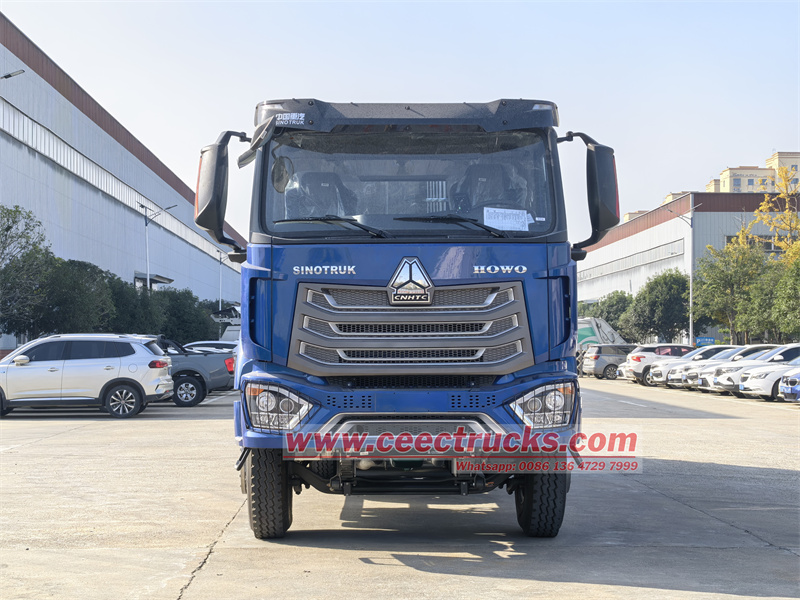

HOWO 6x4 20cbm rear loader compactor truck

Product Details:

Chassis Configuration

• Based on the Sinotruk Howo NX 6x4 chassis, 7-ton front axle, 18-ton dual rear axle load capacity

• Wheelbase: 4600+1350mm

• Engine: Sinotruk WD615.47 engine, 371HP, 1500 Nm wheelbase, Euro 2 emission standard

• Transmission: HW19710 10-speed transmission, smooth shifting and high transmission efficiency

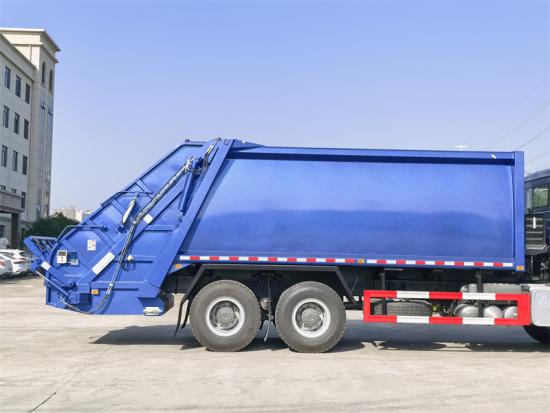

Container Structure

• Volume: 20 cubic meters

• Material: Curved carbon steel container

• Processing: Professional anti-corrosion and rust-proofing treatment to extend service life

• Rear Design: Fully sealed lid to prevent garbage spillage and sewage leakage during transportation

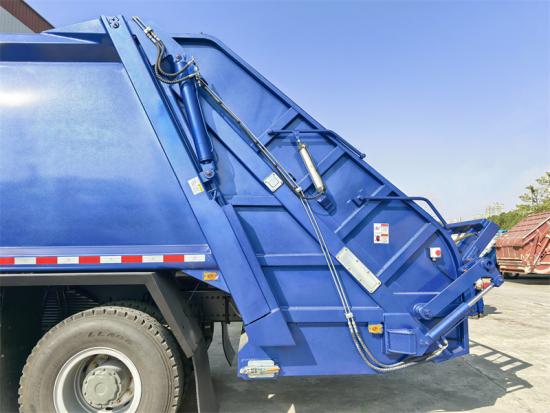

Loading System

• Loading Method: Hook-mounted bin tipping mechanism, compatible with standard 120L/240L/660L garbage bins

• Compression Mechanism: Two-way compression technology, compression ratio can reach 1:3 or higher

Intelligent Control :

The entire vehicle adopts an advanced CAN-BUS bus control system, enabling intelligent and precise control of the garbage loading and unloading process.

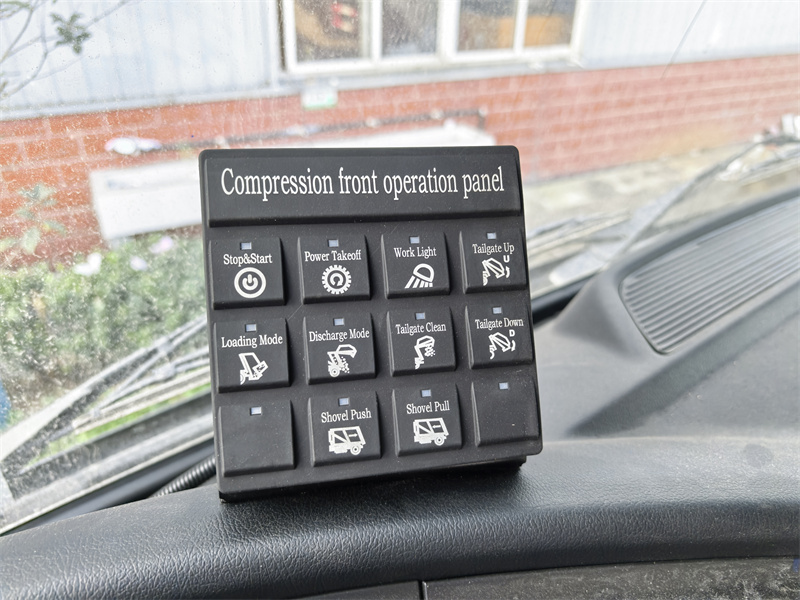

• Cab electrical control box function buttons: Work start/stop, loading mode, unloading mode, loader lifting/lowering, pusher extension/retraction, cleaning function.

Cab electrical control box

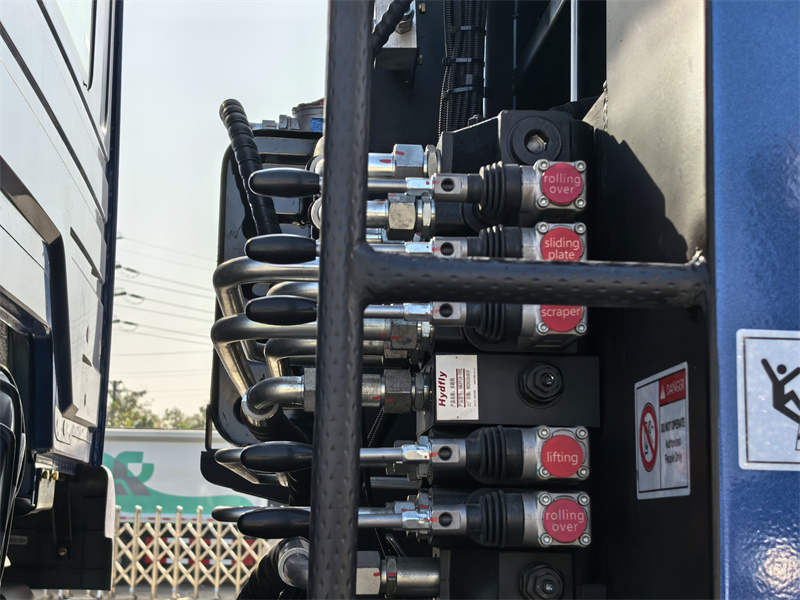

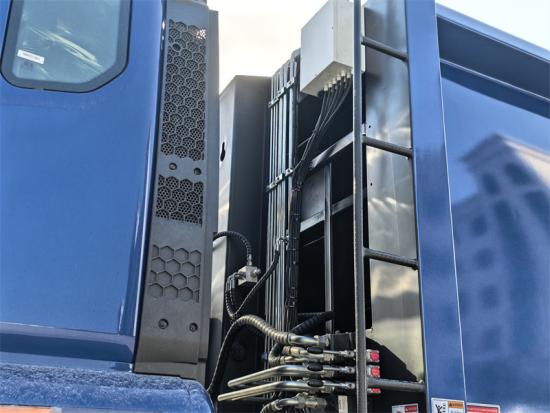

• Driver-side manual hydraulic control lever operation functions: Tilting mechanism lifting, scraper lowering/spinning, slide plate up/down, pusher extension/retraction.

Driver-side manual hydraulic control lever

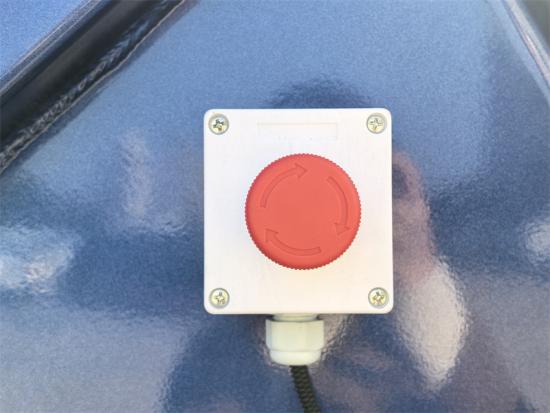

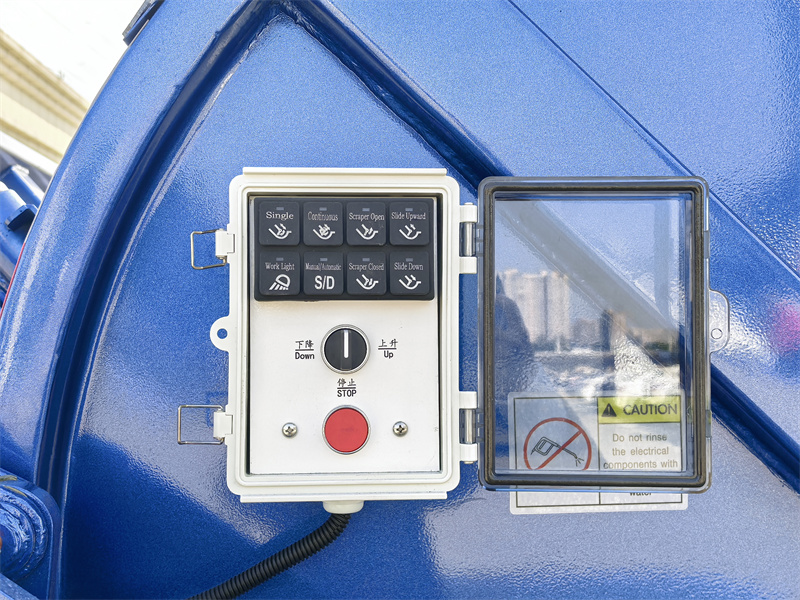

• Tailgate electrical control box: Single/continuous cycle, scraper lowering/spinning, slide plate up/down, automatic/manual mode, work lights, emergency brake, etc., tilting frame tilting knob.

• Tailgate electrical control box:

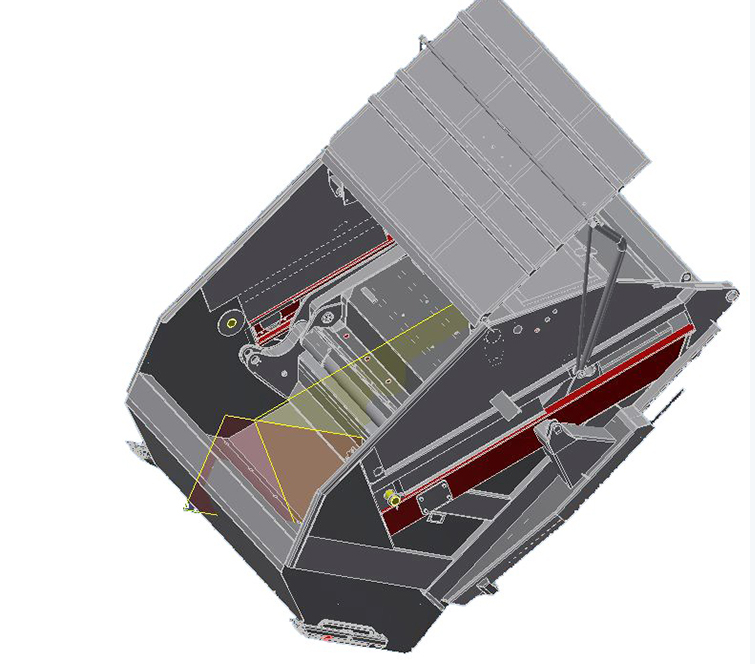

Working Principle:

The Howo 6×4 20 cubic meter rear lifting garbage truck's loading and unloading is based on a combined hydraulic drive and intelligent electronic control system. During loading, the bucket tipping mechanism lifts the garbage bin above the container and dumps the garbage. Under the action of the hydraulic cylinder, the scraper unfolds and descends with the sliding plate, then rotates to scrape and compact the garbage. The sliding plate moves upward, scraping the garbage into the container. The pusher retracts under the compressive force, achieving continuous filling.

How does the garbage compactor truck work?

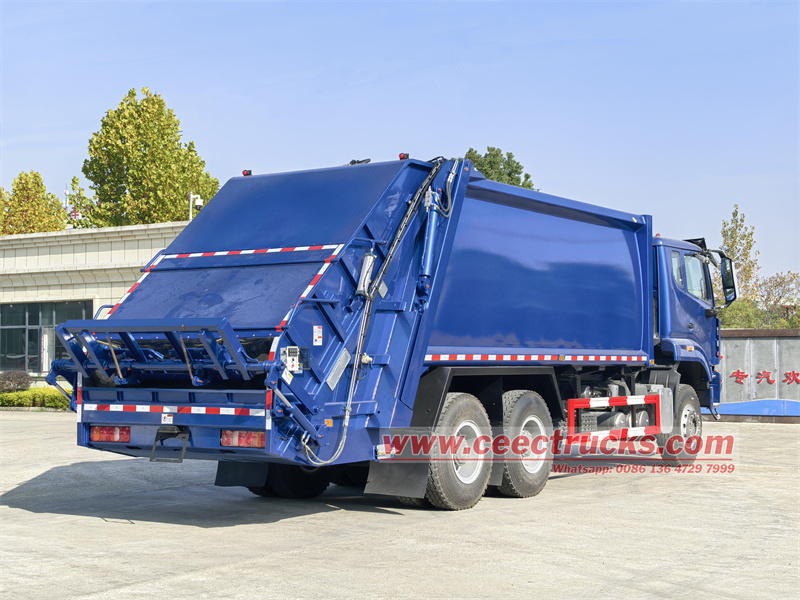

HOWO 6X4 20CBM garbage disposal truck work steps

During unloading, the loader lifting cylinder raises the rear end, and the pusher cylinder horizontally pushes out the garbage, returning to its original position after unloading. The electronic control system supports dual-position operation from the cab and tailgate, with manual hydraulic operation located on the driver's side. Combined with hydraulic overload protection and a sealing design, it ensures safe and efficient operation.

Filler

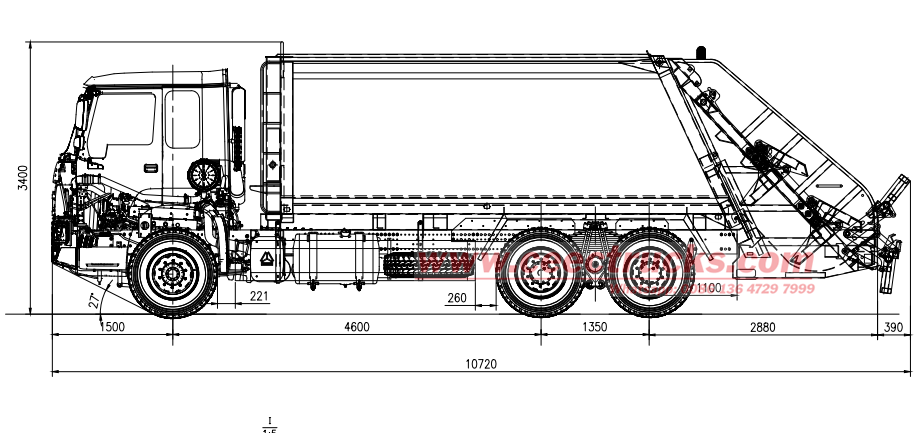

SINOTRUK HOWO 6x4 Compacted 20m3 Garbage Compactor Truck

★ Weichai WD615.47 Euro 2 engine, super powerful

★ SINOTRUK HW19710 Manual 10-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO 20CBM garbage compactor truck

★ Training service for Howo 6x4 rear loader compactor truck

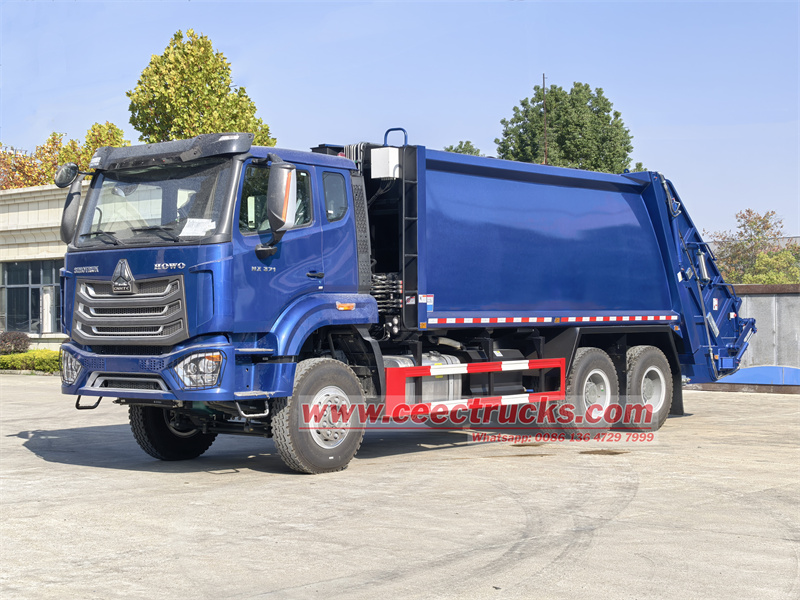

Sinotruk HOWO 6X4 Heavy Duty Waste Collection Truck

중국 전문 소방차 공급업체 및 수출업체로서 고품질 소방차를 공급합니다. garbage compactor truck. We can ensure the fast delivery time and 12 months guarantee for our trash compactor truck. Our rear loader truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
